OMNIDIRECTIONAL METAL FILM CONDENSER MICROPHONE
Please contact us before ordering this product.

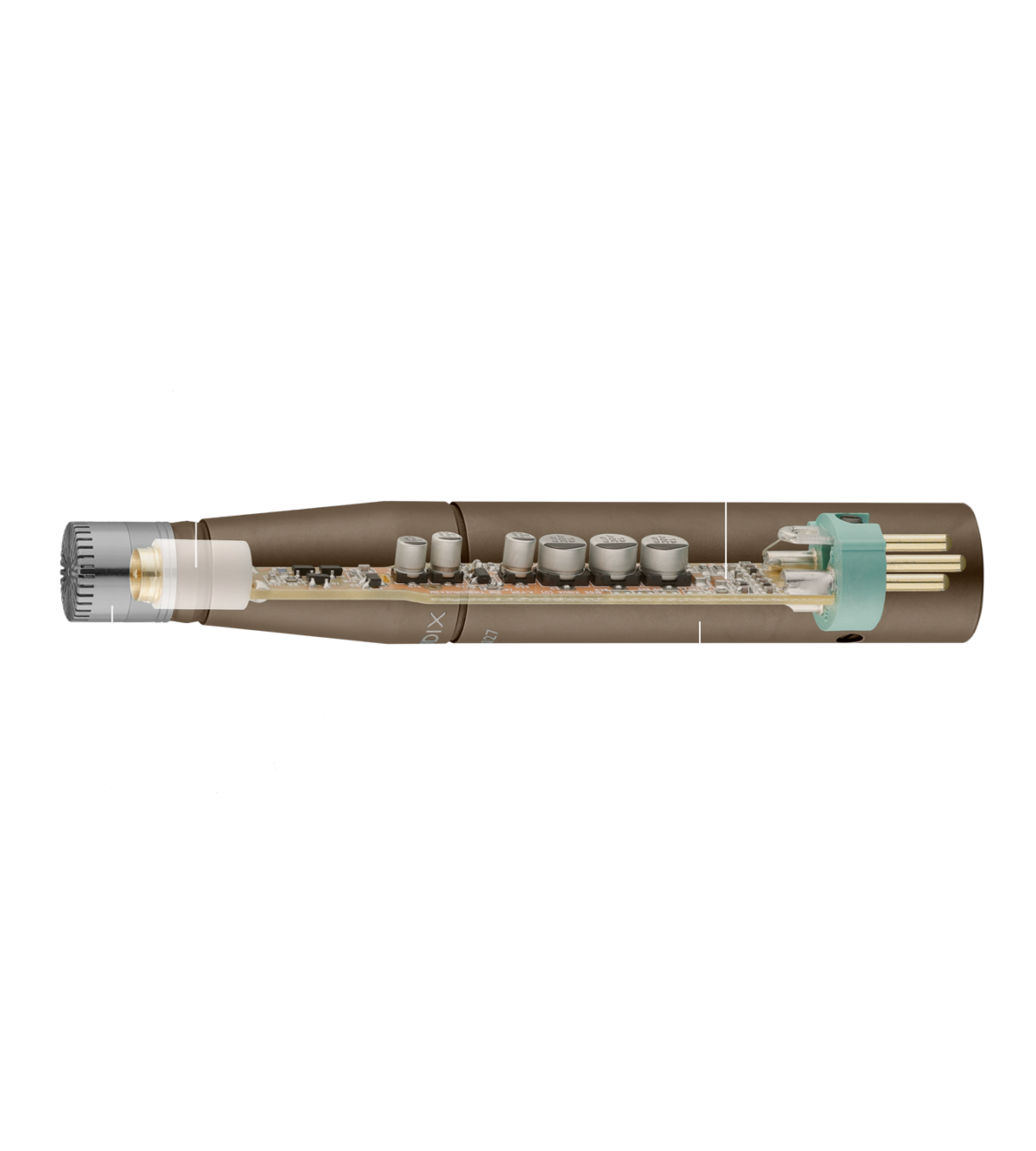

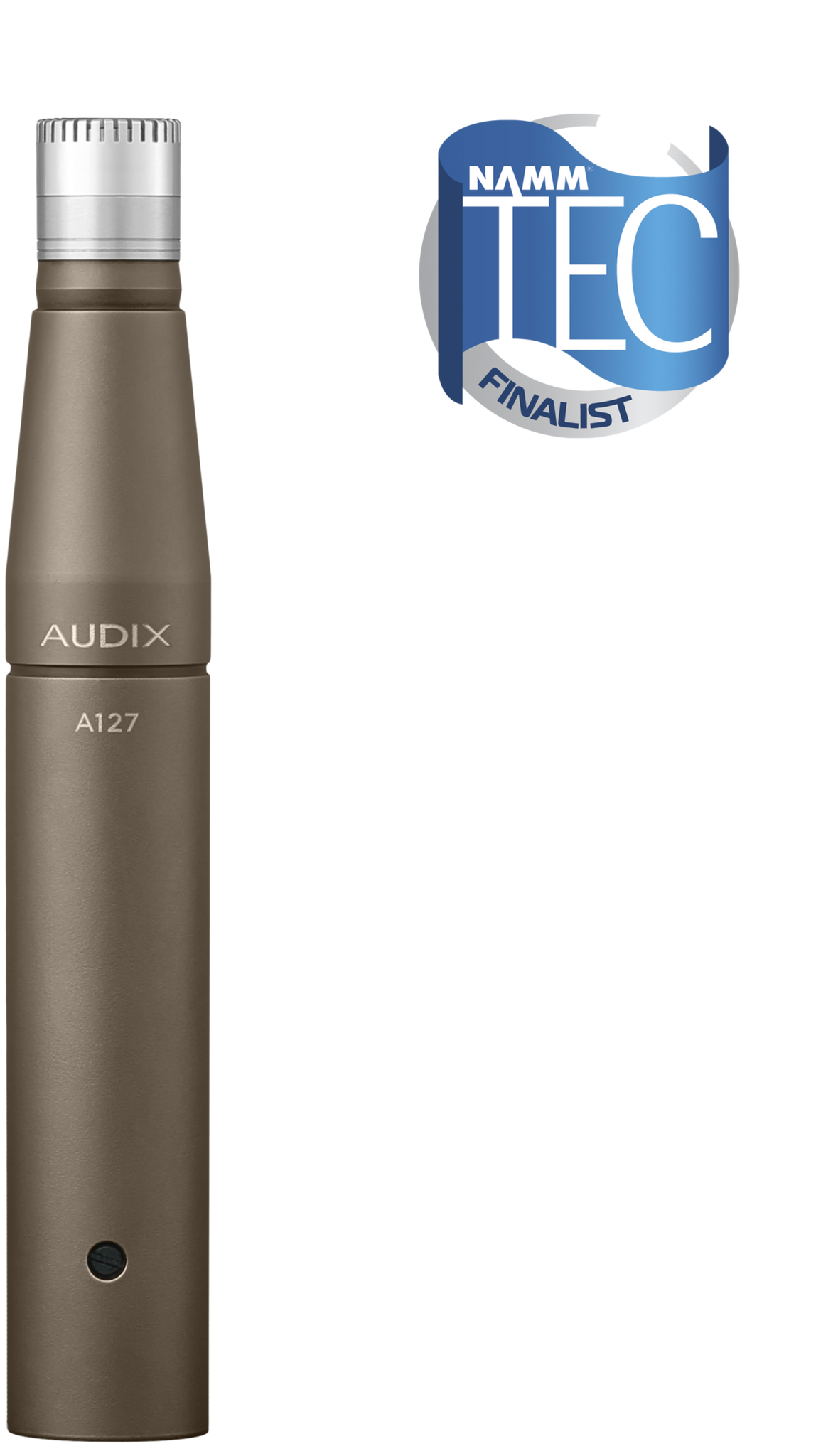

The A127 is an onmnidirectional metal film condenser microphone, designed to capture the most accurate and purest form of acoustic instruments and sound sources. The A127 delivers unmatched performance for recording, broadcast, film, and sound design.

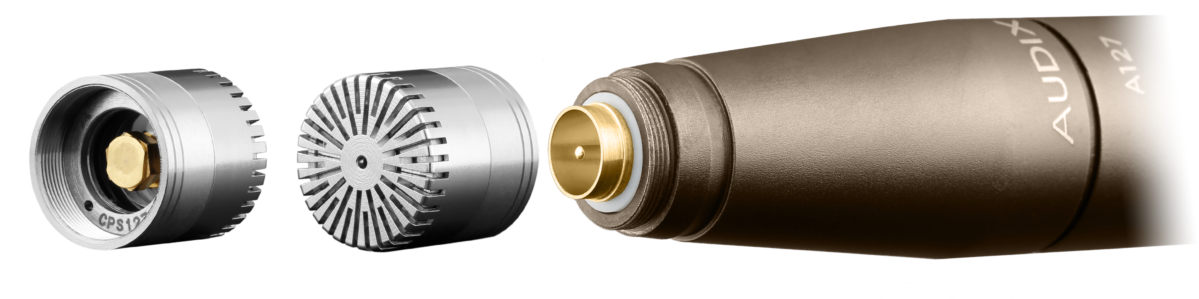

• Pre-polarized half-inch Type 1 metal film capsule (IEC 61094-4 compliant)
• Omnidirectional polar pattern
• Excellent clarity, detail, and transient response
• Transformerless, low-noise circuitry
• Active driven shield
SUPPLIED ACCESSORIES

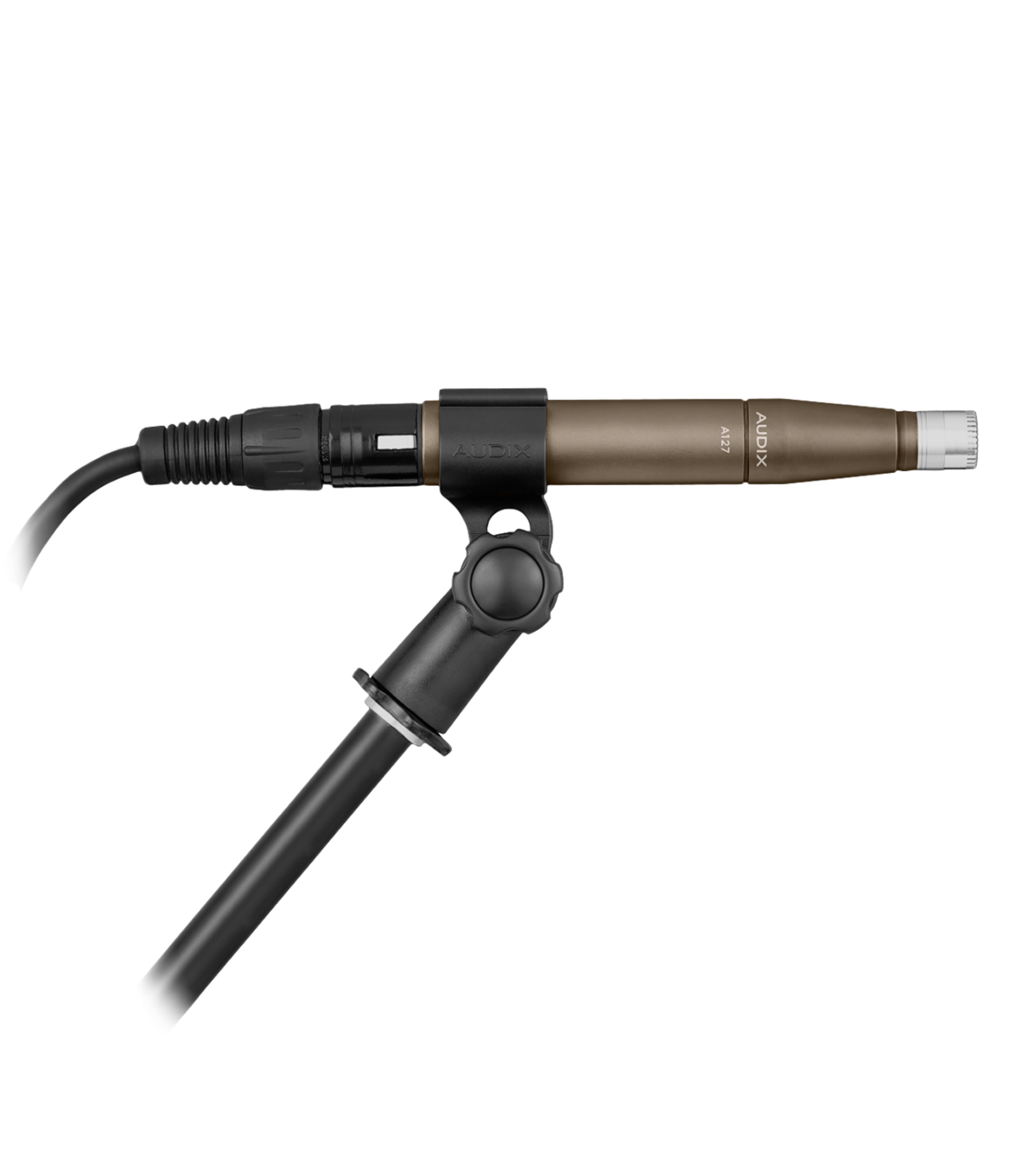

- DCLIP – Heavy-duty nylon molded snap-on clip
- POUCHAXSM – Protective zippered carrying case

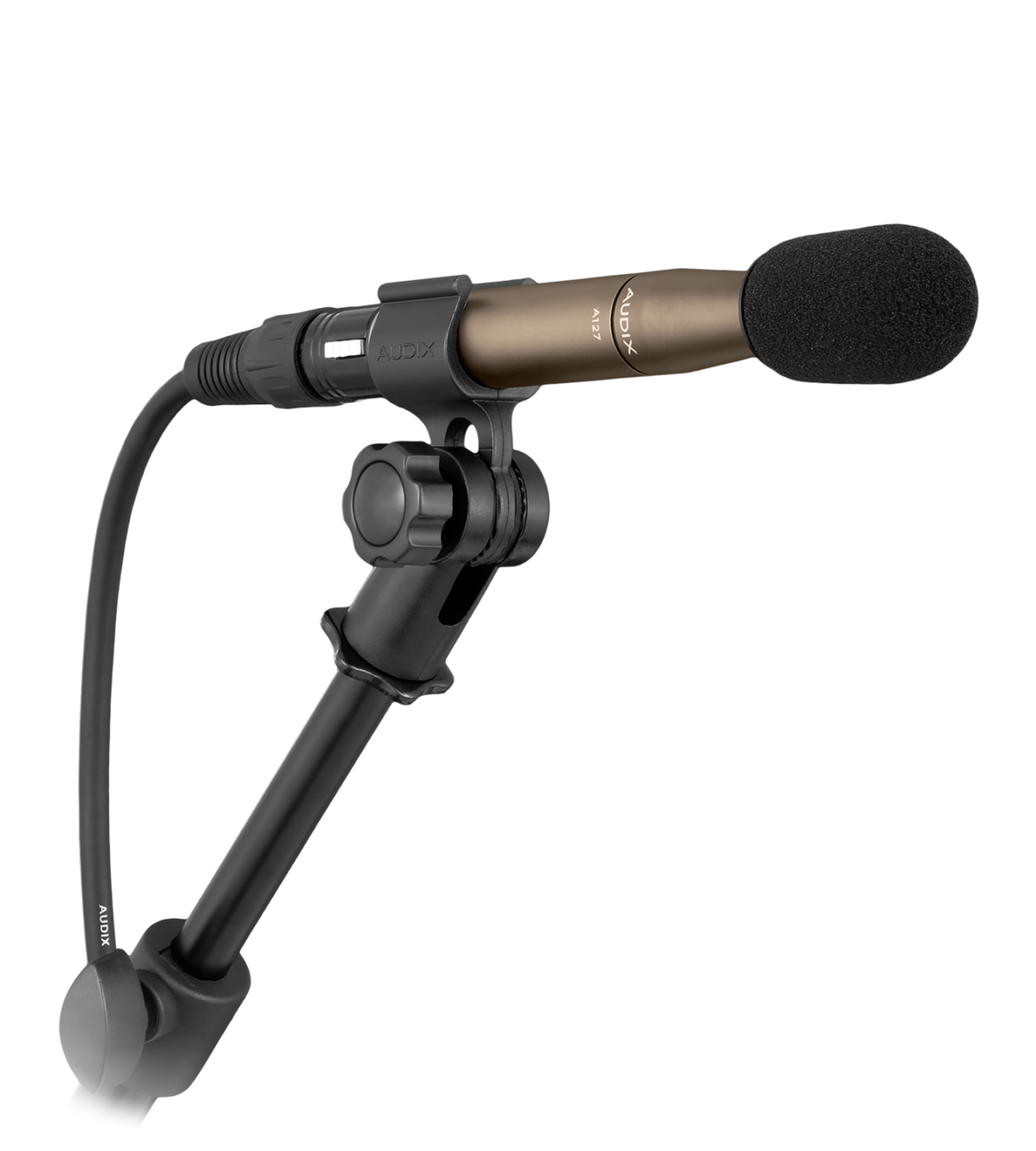

- WSA127 – Acoustical windscreen
| Transducer Type | 1/2″ Type 1 metal film capsule (IEC 61094-4 compliant) |
| Frequency Response | 10 Hz – 20 kHz |
| Polar Pattern | Omnidirectional |
| Output Impedance | 150 Ohms |
| Sensitivity | 28 mV / Pa @ 1 kHz |
| Signal to Noise Ratio | 88 dBA |
| Maximum SPL | 140 dB SPL |
| THD + N | .004% @ 94 dB SPL | 1.0% @ 140 dB SPL |
| Equivalent Noise Level | 7 dBA |
| Dynamic Range | 133 dB |
| Connector | 3-pin XLR m |
| Power Requirements | 48 V +/- 4 V Phantom |
| Power Consumption | 3 mA |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
| Materials / Finish | Brass / Nickel |
| Dimensions | 19 mm x 122 mm |
| Weight | 123 g |
